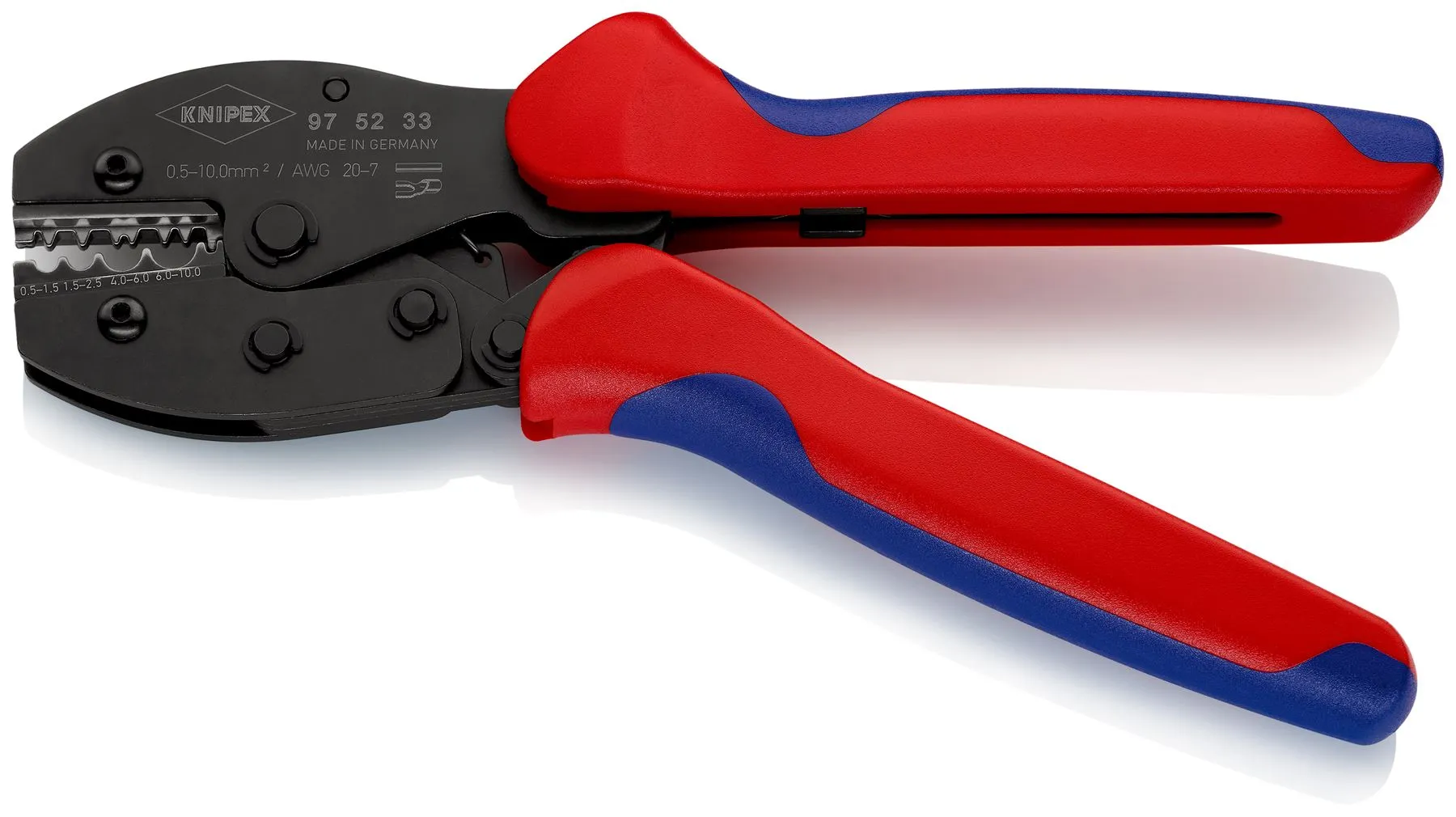

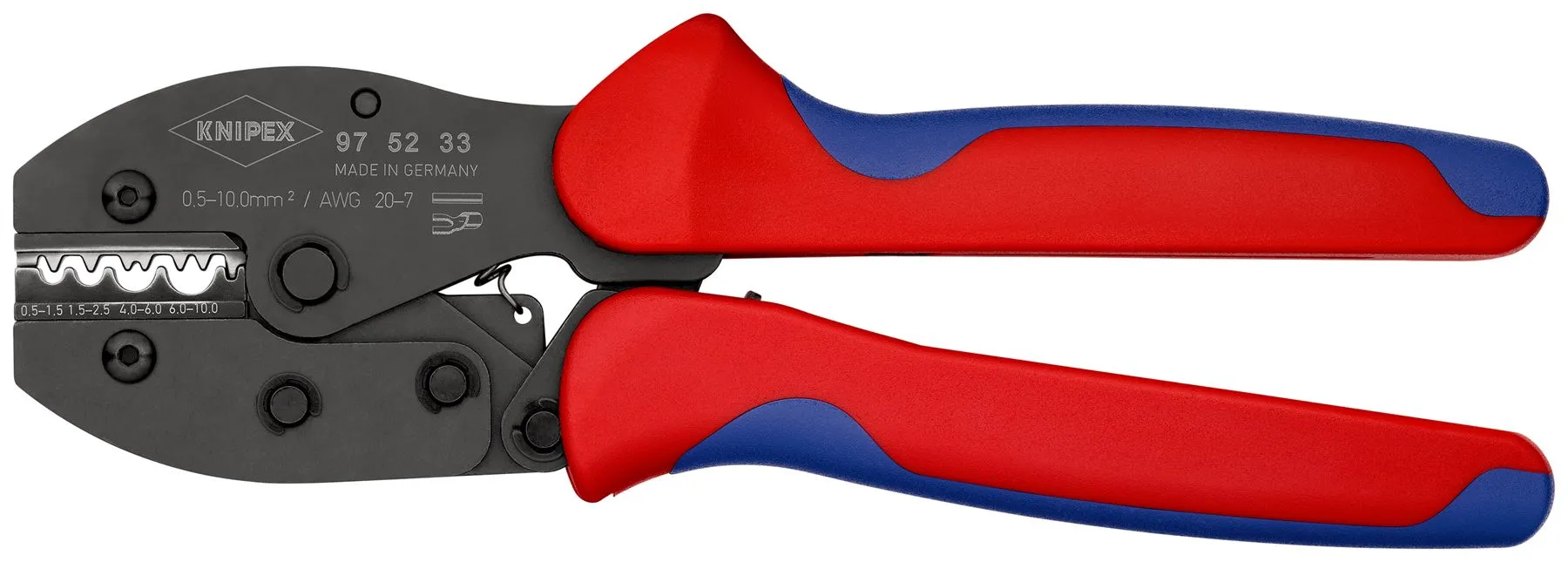

Name: KNIPEX PreciForce Crimping Pliers for Non Insulated Terminals 0.5-10mm² 220mm 97 52 33
SKU: 126036

KNIPEX PreciForce Crimping Pliers for Non Insulated Terminals 0.5-10mm² 220mm 97 52 33

$ 63.20

$ 82.16

Save: $

Title:

DefaultTitle

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

KNIPEX PreciForce Crimping Pliers for Non Insulated Terminals 0.5-10mm² 220mm 97 52 33

97 52 33 KNIPEX PreciForce®
Consistently high crimping quality thanks to precision dies and ratchet mechanism (unlockable). Tools have been set precisely (calibrated) in the factory. Optimum transmission of force thanks to toggle lever for fatigue-reduced operation. Good handling thanks to favourable handle position, low weight, compact design and ergonomically shaped handles. Crimping die is not exchangeable.

Application: non-insulated crimp terminals. tube and compression cable lugs in accordance with DIN 46234 and DIN 46235 and non-insulated crimp. butt and press connectors in accordance with DIN 46341 and DIN 46267

Capacity in square millimetres: 0.5 — 10.0 mm²

Number of crimping positions: 4

AWG: 20 — 8

Technical Information:

Consistently high crimping quality thanks to precision dies and ratchet mechanism (unlockable)
Crimping die is not exchangeable
good handling thanks to favourable handle position, low weight, compact design and ergonomically shaped handles
optimum transmission of force thanks to toggle lever for fatigue-reduced operation
tools have been set precisely (calibrated) in the factory
